Airflow, cooling, and air quality checked before units and diffusers are bought
Send your layout and loads. Get a roadmap to a space that works.
Load calculations size the equipment. They can't show where the air goes once it leaves the diffuser. When airflow isn't modeled, teams oversize fans, chillers, and cooling units to be safe.
They pay for it in equipment and energy every year. Or they find the hot spot, the draft, or the stale corner after commissioning, where every fix means new hardware and downtime.
CFD analysis for HVAC models airflow, temperature, contaminants, and pressure in the real space. You see dead zones, drafts, and short-circuiting before anything is installed. Your design team then makes the change on paper, not on site.
✓
People complain about hot or cold spots
Comfort varies even when the setpoint is met.
✓
Some corners never get fresh air
Stale air and contaminants build up.
✓
Supply air short-circuits to the returns
Cooled air leaves before it does its job.
✓
Cleanrooms or labs must hold pressure limits
Room pressure and air changes have to hold.
✓
Data rooms or equipment run hot
Hot exhaust loops back to the inlets.
✓
Fans and chillers were sized up just in case
You pay for that capacity every year.
Cost you carry
Decision it lets you make
Result
Unit cost
Material & weight
Decision
See where the air goes and how warm each zone gets, then size units to the real load
→
Result
Equipment that fits the space, with no oversizing
Development
Prototypes & testing
Decision
Predict airflow, comfort, and air changes before equipment is installed; confirm at commissioning
→
Result
Fewer changes at commissioning
Tooling
Rework & redesign
Decision
Find dead zones, drafts, and recirculation in the model and move diffusers on paper
→
Result
Equipment installed once
After launch
Field failures & warranty
Decision
Model seasons, occupancy, and equipment loads; release with documented results
→
Result
Lower energy use and a design you can defend
01
A design that meets your loads at the lowest total cost, delivered as production-ready CAD and drawings
02
FEA results and margins you review and approve at each gate, before anything moves to prototyping.
03
You own the IP by default, set in your contract.
04
If we missed it in our QC, we fix it. If your supplier can't make the part within three years, or supply dries up, we fix that too.
You send
What we need to start
CAD, native or STEP
Loads and operating conditions, or how the part is used
Material specs or test data, if you have it
Targets: weight, cost, life, or code
Failure history, if a part already failed
→
You get
What you hold at the end
The optimized design: CAD and drawings ready for production
Models and results you reviewed and approved
Documented margins or code compliance
Test correlation, when testing is in scope: a partner lab or yours
A roadmap for what comes next, and a team that stays with you
We price to the value we deliver, not the hours we log. If the value isn't there for you, we'll say so in the assessment.
We review your project scope and the data you have and find where airflow drives the risk.
Scope, targets, and gates, from where you are to where you need to be.

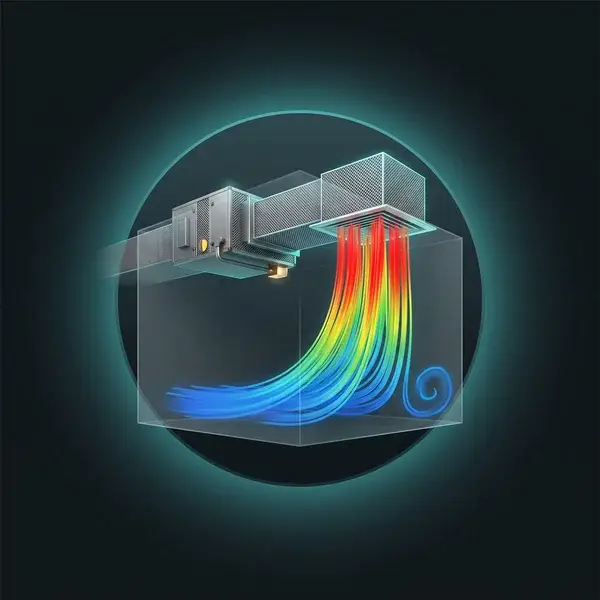

HVAC CFD and layout changes, with site measurement when the design needs it.
The design, drawings, and models, second-checked in our QMS.
We stand behind the design through production and supply issues.
Our engineers run CFD, heat transfer, and design as one loop. CFD sets the airflow and temperatures. Heat transfer checks the equipment. Layout changes follow, and cost is checked before anything is bought. It is the same method behind all our CFD consulting services.
Equipment sized, airflow assumed
Or oversize until it does
Ducts and units bought and hung
Hot spots and drafts at handover
New diffusers, new ducts, new balance
Where airflow drives the risk
Airflow, comfort, air changes
Geometry refined to real margins
Second engineer verifies the model
Build once, to confirm
Every fix after commissioning is budget lost. Get a free roadmap.
Get Your Free RoadmapHot and cold aisles, rack inlets, and cooling units modeled so the equipment runs cool at full load.
Run cool at full load.
Applications
Hot Aisles
Rack Inlets
Cooling
Bolted Joints
Air changes, room pressure, and one-way flow checked so cleanrooms are designed to hold their class.
Designed to hold class.
Applications
Air Changes
Pressure
Particles
Elastomers
Ventilation and capture airflow around sterilizers and aeration rooms modeled to protect the workforce.
Protect your workforce.
Applications
Ventilation
Capture
Aeration
Fatigue
Turbine halls and electrical rooms checked for heat build-up so the equipment stays inside its limits.
Fewer forced outages.
Applications
Turbine Halls
Switchgear
Heat
Class Rules
FEA, CFD, CAD, DFMA, and testing under one roof. Engineering is a team sport, and you get the whole team.
One team, every skill.
Under One Roof
FEA
CFD
CAD
DFMA
Testing
Veteran-owned SDVOSB status gives defense and federal buyers a set-aside path to proven engineering.
Verify our SDVOSB status.
Credentials
SDVOSB
VOSB
CAGE 8ZK73
NAICS 541330
Missed something in our QC? We fix it. Supplier can't make the part within three years? We fix that too.
Support for the long run.
We Fix
Our QC Misses
Supplier Gaps
Supply Chain
We price to the value we deliver, not hours logged. You buy a design that works, not more iterations.
Pay for the result only.
Collections
Gold
Platinum
Diamond
When does a space need CFD analysis for HVAC?
A space needs CFD analysis for HVAC when the question is where the air goes, not only how much of it there is. Load calculations size the equipment well. They can't show drafts, dead zones, or recirculation, and those decide whether people and equipment stay comfortable and safe. Watch for four signs. Uneven airflow in a facility leaves hot or cold spots. Corners stay stale while the setpoint is met. Supply air short-circuits to the returns. Or a cleanroom, lab, or data room has strict limits. ASHRAE Standard 55 sets the comfort conditions people expect. Each miss costs you energy every year, or costly rework after commissioning.
In a free assessment, we review your project scope and loads and show where airflow drives the risk. If a simple calculation is enough, we say so. If not, our CFD simulation services map airflow, temperature, and air changes zone by zone. Your design team gets the evidence to move diffusers or resize units before anything is installed. That is when CFD earns its cost on an HVAC project.
What does an HVAC CFD study model?
Our CFD analysis for HVAC models the air in the actual space. That includes speed, temperature, humidity where it matters, room pressure, and the spread of heat or contaminants. As indoor air quality services go, it shows the cause of a problem, not just a reading on a screen. A sensor tells you a room has a problem. It can't tell you why it happens, or what to change. The EPA's indoor air quality guidance notes that too little outdoor air lets pollutants build up. Fixing that by guesswork alone often means more fan power, more energy, and the same stale corner again next season.
Diffusers, returns, equipment, people, and furniture are modeled at the detail the question needs. We report comfort, air change effectiveness, dead zones, and how fast a space clears after a release. Steady studies cover design conditions. Transient studies cover short events like door openings or equipment failures. We accept CAD, BIM exports, or plain floor plans, and native model files come back to you at delivery.
What do you need from us to start?
To start CFD analysis for HVAC work, send what you have, in any format. That usually means floor plans, sections, or CAD, plus occupancy, heat sources, and HVAC equipment data for each zone. Add any complaints, readings, or commissioning data you already have on site, even rough ones. Missing data is the most common reason engineering projects stall, and it costs you time and budget. A model built on guessed inputs gives a guessed answer. Targets matter too, so set them early. ASHRAE Standard 62.1 sets minimum ventilation needs for many spaces. That is why we don't start the work until every data set is in.
Once it is, the first step is a free assessment of your project scope and data. We confirm what the work can and can't answer, and tell you what is still missing. Then we send a roadmap proposal with scope, targets, and approval gates. Every project is scoped on its own, so the roadmap sets the schedule, not a stock promise. NDAs are available before you share any files.
Who owns the design and the models?
You own the IP from your CFD analysis for HVAC project by default, set in your contract. That covers the equipment designs, the drawings, and the models. Some firms keep the models, or license them back to you, so every later change sends you back to them. That locks your facility to one vendor for every future change. It also makes reviews harder, because your design team can't open the evidence behind each decision. If your site falls under export rules, data handling matters too. The State Department's ITAR guidance sets the rules for defense data, and a loose process puts you at risk.
At delivery, you receive the native CAD, the drawings, the model files, and the documented results. Your engineers can check the work, rerun a case, or hand the package to your engineer of record or contractor. We sign mutual NDAs before any data is shared. Your files stay in controlled project folders. Tell us your data rules at the start, and we set up handling to match.
What happens if the installed system doesn't perform as modeled?
If a space designed with our CFD analysis for HVAC doesn't perform as modeled, we find out why. Real occupancy, equipment loads, and installation effects never match a model perfectly. Because you approve the data at each gate, a site reading is checked against predictions you have already seen. A failed balance or comfort check feels like a setback, but it is useful data. It shows which assumption was wrong: a heat load, a supply rate, or a boundary condition. Without a plan, that data gets argued over instead of used to fix the design. The ASME V&V 20 standard sets out how to judge CFD against test.
When site measurement is in scope, we plan it with a partner to confirm the airflow and temperatures that matter most. Then we correlate the model to the readings. If the miss was ours, because something slipped through our QC review, we fix it. If the test finds a condition nobody knew about, we scope the change with you and update the roadmap.
How is CFD analysis for HVAC priced?
We price every CFD analysis for HVAC project to the value it delivers, not the hours we log. Hourly billing rewards extra iterations. The cheapest quote often becomes the most expensive project once rework after commissioning shows up. Our incentive is to get the design right the first time. We engage by fit, not as a ladder, and you can move between them. Gold (from $35K): you have one project and need help with it. Platinum (from $15K/mo): you have recurring work at a steady rhythm. Diamond (from $800K/yr): you have a long development program, often multi-year. Federal buyers can also use the SBA's SDVOSB set-aside program.
Gold is never required, and some clients start at Platinum or Diamond. These are starting points, not quotes or bids. Your price comes from the free assessment, where we review your project scope and send a roadmap proposal with scope and cost. We price to the value we deliver, not the hours we log. If the value isn't there for you, we'll say so in the assessment.
Not sure where the air goes? Send the layout. Free roadmap.
Send your layout, loads, and targets. We review your project scope in a free assessment and reply within one business day with next steps. You can also [contact our CFD engineers](/contact-engineering-consulting/) directly.
On-site assessments that require travel are quoted separately.
